Product Summary

The LM117K/H/883 is a adjustable 3-terminal positive voltage regulator. It is capable of supplying in excess of 1.5A over a 1.2V to 37V output range.

Parametrics

LM117K/H/883 absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input-Output Voltage Differential: +40V, -0.3V; (3)Storage Temperature: 65 to +150℃; (4)ESD Tolerance: 3 kV.

Features

LM117K/H/883 features: (1)Guaranteed 1% output voltage tolerance; (2)Guaranteed max. 0.01%/V line regulation; (3)Guaranteed max. 0.3% load regulation; (4)Guaranteed 1.5A output current; (5)Adjustable output down to 1.2V; (6)Current limit constant with temperature; (7)P+ Product Enhancement tested; (8)80 dB ripple rejection; (9)Output is short-circuit protected.

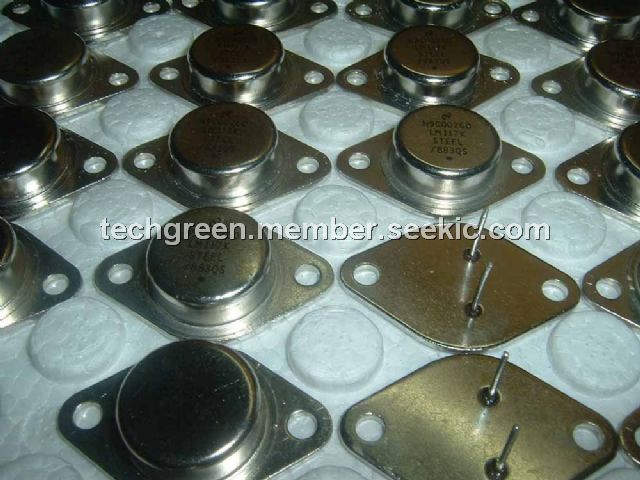

Diagrams
