STM32F407VGT6

Product Summary

The STM32F407VGT6 is an A/D Converter. The STM32F407VGT6 is based on the high-performance ARM® Cortex™-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all ARM single precision data-processing instructions and data types. The STM32F407VGT6 also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The Cortex-M4 core with FPU will be referred to as Cortex-M4F throughout this document. The STM32F407VGT6 incorporates high-speed embedded memories (Flash memory up to 1 M byte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

Parametrics

STM32F407VGT6 absolute maximum ratings: (1)External main supply voltage (including VDDA, VDD) : –0.3 to 4.0 V; (2)Input voltage on five-volt tolerant pin : VSS–0.3 to VDD+4 V; (3)Input voltage on any other pin : VSS–0.3 to 4.0 V; (4)Variations between different VDD power pins : 50 mV; (5)Variations between all the different ground pins : 50 mV; (6)Total current into VDD power lines (source) : 150 mA; (7)Total current out of VSS ground lines (sink) : 150 mA; (8)Output current sunk by any I/O and control pin : 25 mA; (9)Output current source by any I/Os and control pin : 25mA; (10)Injected current on five-volt tolerant I/O : -5/+0 mA; (11)Injected current on any other pin : ±5mA; (12)Total injected current (sum of all I/O and control pins) : ±25mA.

Features

STM32F407VGT6 features: (1) LCD parallel interface, 8080/6800 modes; (2) 3×12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode; (3) 2×12-bit D/A converters; (4) General-purpose DMA: 16-stream DMA controller with FIFOs and burst support; (5) Up to 17 timers: up to twelve 16-bit and two 32- bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input; (6) 8- to 14-bit parallel camera interface up to 54 Mbytes/s; (7) True random number generator; (8) CRC calculation unit.

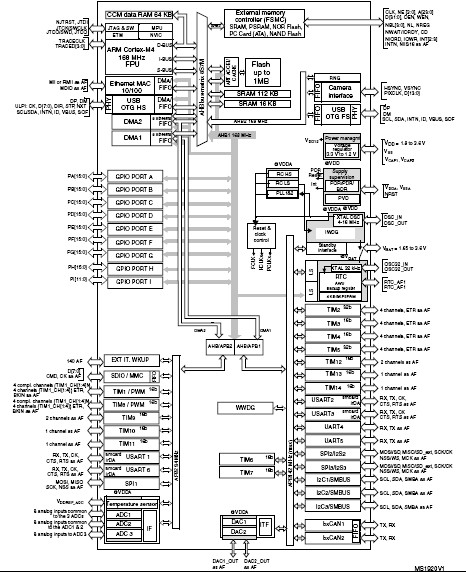

Diagrams
