Product Summary

The LPC1768FBD100 is an ARM cortex-M3 based micprpcontroller. The LPC1768FBD100 is designed for embedded applications featuring a hihg level of intergration and low power consumption. It offers system enhancements such as enhanced debyg features and a higher level of support block integration.

Parametrics

LPC1768FBD100 absolute maximum ratings: (1)VDD, supply voltage (3.3V): 2.4 to 3.6V when core and external rail; (2)VDD(REG)(3V3), regulator supply voltage (3.3V): 2.4 to 3.6V; (3)VDDA, analog 3.3V pad supply voltage: -0.5 to +4.6V; (4)Vi(VBAT), input voltage on pin VBAT: -0.5 to +4.6V when for the RTC; (5)Vi(VREFP), input voltage on pin VREFP: -0.5 to +4.6V; (6)VIA, analog input voltage: -0.5 to +5.5V when on ADC related pins; (7)Tstg, storage temperature: -65 to +150℃.

Features

LPC1768FBD100 features: (1)ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC); (2)Up to 512 kB on-chip flash programming memory. Enhanced flash memory accelerator enables high-speed 120 MHz operation with zero wait states; (3)In-System Programming (ISP) and In-Application Programming (IAP) via on-chip bootloader software; (4)Eight channel General Purpose DMA controller (GPDMA) on the AHB multilayer matrix that can be used with SSP, I2S-bus, UART, Analog-to-Digital and Digital-to-Analog converter peripherals, timer match signals, and for memory-to-memory transfers; (5)Multilayer AHB matrix interconnect provides a separate bus for each AHB master. AHB masters include the CPU, General Purpose DMA controller, Ethernet MAC, and the USB interface. This interconnect provides communication with no arbitration delays; (6)Split APB bus allows high throughput with few stalls between the CPU and DMA.

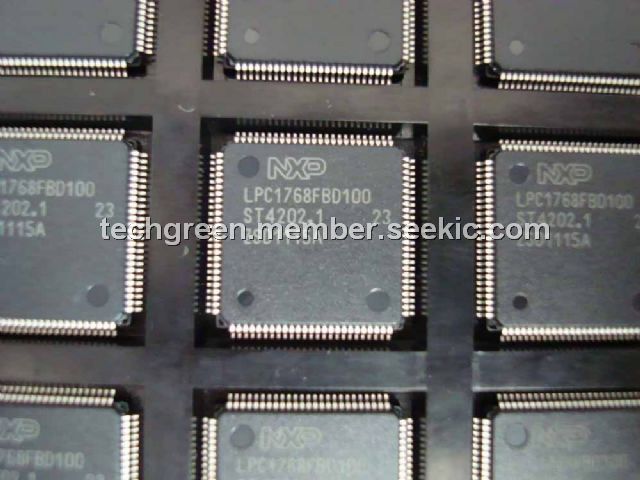

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LPC1768FBD100,551
LPC1768FBD100,551
NXP Semiconductors
ARM Microcontrollers (MCU) ARM Cortex M3 Micro Controller
Data Sheet
0-1: $5.12
1-25: $4.59
25-100: $4.21
100-250: $4.06
