Product Summary

The STPS30H100C is a Dual center tap Schottky rectifier which is suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in TO-247, this STPS30H100C is intended for use in high frequency inverters.

Parametrics

STPS30H100C absolute maximum ratings: (1)Repetitive peak reverse voltage: 100 V; (2)RMS forward current: 30 A; (3)Average forward current: 15 A at Tc = 155℃, Per diode; (4)Surge non repetitive forward current: 250 A at tp = 10 ms sinusoidal; (5)Repetitive peak reverse current: 1 A at tp = 2 μs square F = 1kHz; (6)Non repetitive peak reverse current: 3 A at tp = 100 μs square; (7)Repetitive peak avalanche power: 10800 W at tp = 1μs Tj = 25℃; (8)Storage temperature range: - 65 to + 175 ℃.

Features

STPS30H100C features: (1)negligible switching losses; (2)low leakage current; (3)good trade off between leakage current and forward voltage drop; (4)low thermal resistance; (5)avalanche capability specified.

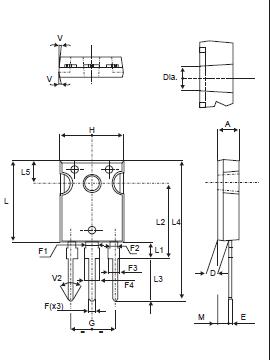

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STPS30H100CR
STPS30H100CR
STMicroelectronics
Schottky (Diodes & Rectifiers) High Volt PWR REC 2x15A 100V 0.67V Vf
Data Sheet
0-420: $0.95
420-500: $0.83
500-1000: $0.75
1000-2000: $0.67
STPS30H100CT
STPS30H100CT
STMicroelectronics
Schottky (Diodes & Rectifiers) 2X15 Amp 100 Volt
Data Sheet
0-690: $0.64
690-1000: $0.61
1000-2000: $0.58
2000-5000: $0.56
STPS30H100CW
STPS30H100CW
STMicroelectronics
Schottky (Diodes & Rectifiers) 2X15 Amp 100 Volt
Data Sheet
0-1: $1.10
1-10: $0.97
10-100: $0.84
100-250: $0.77
