Product Summary

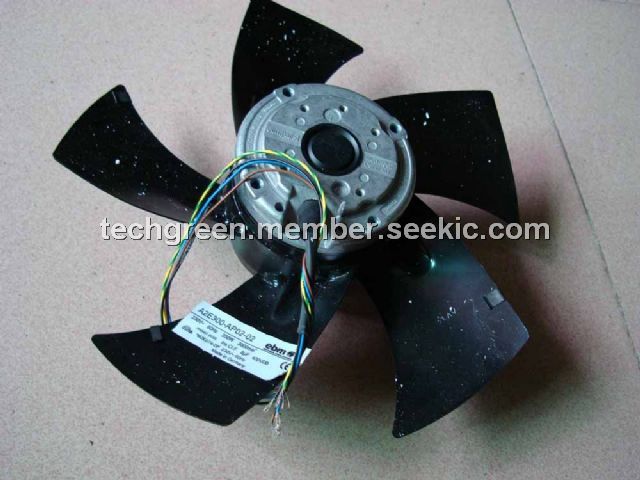

The A2E300-AP02-02 is a sickled blade.

Parametrics

Absolute maximum ratings: (1)norminal voltage: 230V; (2)frequency: 50Hz; (3)speed: 2700min-1; (4)power input: 230W; (5)current draw: 1.10A; (6)capacitor voltage: 400VDB.

Features

Features: (1)Leackage current: < 0.75 mA; (2)Size: 300 mm; (3)Operation mode: S1; (4)Direction of rotation: Clockwise, seen on rotor; (5)Mounting position: Shaft horizontal or rotor on bottom; rotor on top on request; (6)Humidity class: F1-2; (7)Direction of air flow: "A"; (8)Insulation class: "B"; (9)Cable exit: Variable; (10)Condensate discharge holes: Rotor-side; (11)Bearing motor: Ball bearing; (12)Mass: 3.0 kg; (13)Material of blades: Sheet steel, coated in black; (14)Motor protection: Thermal overload protector (TOP) wired internally; (15)Product conforming to standard: CE; EN 60335-1; (16)Surface of rotor: Coated in black; (17)Number of blades: 5; (18)Type of protection: IP 44; (19)Protection class: I.

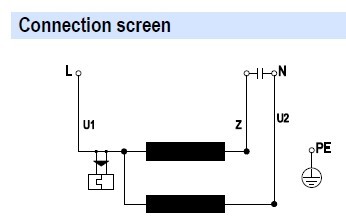

Diagrams
