Product Summary

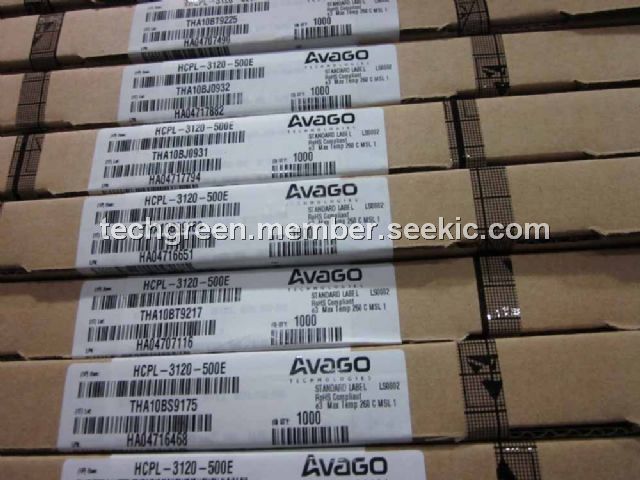

The HCPL-3120-500E/000E is a GaAsP LED. It is optically coupled to an integrated circuit with a power output stage. The HCPL-3120-500E/000E is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices.
Parametrics
HCPL-3120-500E/000E absolute maximum ratings: (1)Storage Temperature, TS: -55 to 125℃; (2)Operating Temperature, TA: -40 to 100℃; (3)Average Input Current, IF(AVG): 25 mA ; (4)Peak Transient Input Current, IF(TRAN): 1.0 A; (5)Supply Voltage, (VCC - VEE): 0 to 35 Volts; (6)Output Voltage, VO(PEAK): 0 VCC Volts; (7)Output Power Dissipation, PO: 250 mW; (8)Total Power Dissipation, PT: 295 mW.
Features
HCPL-3120-500E/000E features: (1)2.5 A maximum peak output current; (2)2.0 A minimum peak output current; (3)25 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1500 V; (4)0.5 V maximum low level output voltage (VOL) Eliminates need for negative gate drive; (5)ICC = 5 mA maximum supply current; (6)Under Voltage Lock-Out protection (UVLO) with hysteresis; (7)Wide operating VCC range: 15 to 30 Volts; (8)500 ns maximum switching speeds; (9) Industrial temperature range: -40℃ to 100℃.
Diagrams
 |
