Product Summary
The DSPIC33FJ256GP710 is a High-Performance, 16-Bit Digital Signal Controller. The DSPIC33FJ256GP710 is ideal for a wide variety of 16-bit MCU embedded applications. The controllers with codec interfaces are well-suited for speech and audio processing applications.
Parametrics
DSPIC33FJ256GP710 absolute maximum ratings: (1)Ambient temperature under bias: -40 to +85℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +4.0V; (4)Voltage on any combined analog and digital pin and MCLR, with respect to VSS: -0.3V to (VDD + 0.3V); (5)Voltage on any digital-only pin with respect to VSS: -0.3V to +5.6V; (6)Voltage on VCAP/VDDCORE with respect to VSS: 2.25V to 2.75V; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin(2): 250 mA; (9)Maximum output current sunk by any I/O pin(3): 4 mA; (10)Maximum output current sourced by any I/O pin(3): 4 mA; (11)Maximum current sunk by all ports: 200 mA; (12)Maximum current sourced by all ports(2): 200 mA.
Features
DSPIC33FJ256GP710 features: (1)Modified Harvard architecture; (2)C compiler optimized instruction set; (3)16-bit wide data path; (4)24-bit wide instructions; (5)Linear program memory addressing up to 4M instruction words; (6)Linear data memory addressing up to 64 Kbytes; (7)83 base instructions: mostly 1 word/1 cycle; (8)Sixteen 16-bit General Purpose Registers; (9)Two 40-bit accumulators: With rounding and saturation options; (10)Flexible and powerful addressing modes: Indirect, Modulo and Bit-Reversed; (11)Software stack; (12)16 x 16 fractional/integer multiply operations; (13)32/16 and 16/16 divide operations; (14)Single-cycle multiply and accumulate: Accumulator write back for DSP operations; (15) Dual data fetch; (16)Up to ±6-bit shifts for up to 40-bit data.

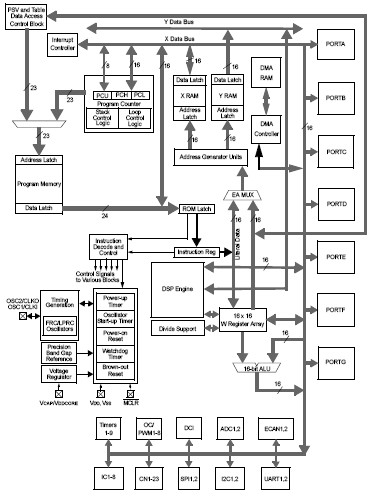

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 dsPIC33FJ256GP710 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
dsPIC33FJ256GP710A-E/PF |
Microchip Technology |
Digital Signal Processors & Controllers (DSP, DSC) 16Bit 40MIPS 256KB Flash |
Data Sheet |
|
|
||||||||||||
 |
dsPIC33FJ256GP710A-I/PF |
Microchip Technology |
Digital Signal Processors & Controllers (DSP, DSC) 16Bit 40MIPS 256KB Flash |
Data Sheet |
|
|
||||||||||||
|
dsPIC33FJ256GP710A-H/PF |
Microchip Technology |
Digital Signal Processors & Controllers (DSP, DSC) 16 bit DSC 20MIPS 256KB Flash |
Data Sheet |
|
|
||||||||||||
|
dsPIC33FJ256GP710A-H/PT |
Microchip Technology |
Digital Signal Processors & Controllers (DSP, DSC) 16 bit DSC 20MIPS 256KB Flash |
Data Sheet |
|
|
||||||||||||
|
dsPIC33FJ256GP710A-E/PT |
Microchip Technology |
Digital Signal Processors & Controllers (DSP, DSC) 16Bit 40MIPS 256KB Flash |
Data Sheet |
|
|
||||||||||||
|
dsPIC33FJ256GP710-I/PF |
Microchip Technology |
Digital Signal Processors & Controllers (DSP, DSC) 40MIPS 256KB |
Data Sheet |
|
|
||||||||||||
 |
dsPIC33FJ256GP710-I/PT |
Microchip Technology |
Digital Signal Processors & Controllers (DSP, DSC) 40MIPS 256KB |
Data Sheet |
|
|
||||||||||||
