IR2104STRPBF

IGBT driver, power MOSFET, high voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.70

PartNumber:: IR2104STRPBF

Brand:: International Rectifier - IR | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-28

From Other Seller

Part Number:IR2104STRPBF
US $0.10 - 0.70
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

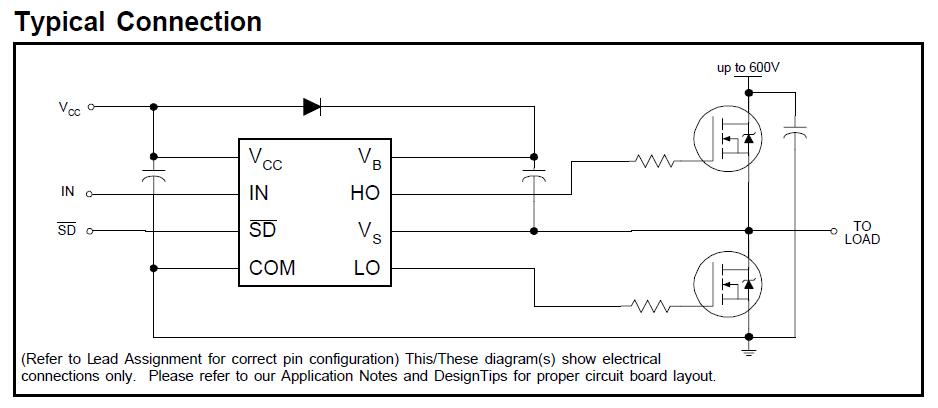

The IR2104STRPBF is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.

Parametrics

IR2104STRPBF absolute maximum ratings: (1)High side floating absolute voltage: -0.3 to 625 V; (2)High side floating supply offset voltage: VB - 25 to VB + 0.3 V; (3)High side floating output voltage: VB - 0.3 to VB + 0.3 V; (4)Low side and logic fixed supply voltage: -0.3 to 25 V; (5)Low side output voltage: -0.3 to VCC + 0.3 V; (6)Logic input voltage (IN & SD): -0.3 to VCC + 0.3 V; (7)Allowable offset supply voltage transient: 50 V/ns; (8)Junction temperature: 150℃; (9)Storage temperature: -55 to 150℃; (10)Lead temperature (soldering, 10 seconds): 300℃.

Features

IR2104STRPBF features: (1)Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage; (2)dV/dt immune; (3)Gate drive supply range from 10 to 20V; (4)Undervoltage lockout; (5)3.3V, 5V and 15V input logic compatible; (6)Cross-conduction prevention logic; (7)Internally set deadtime; (8)High side output in phase with input; (9)Shut down input turns off both channels; (10)Matched propagation delay for both channels; (11)Also available LEAD-FREE.
